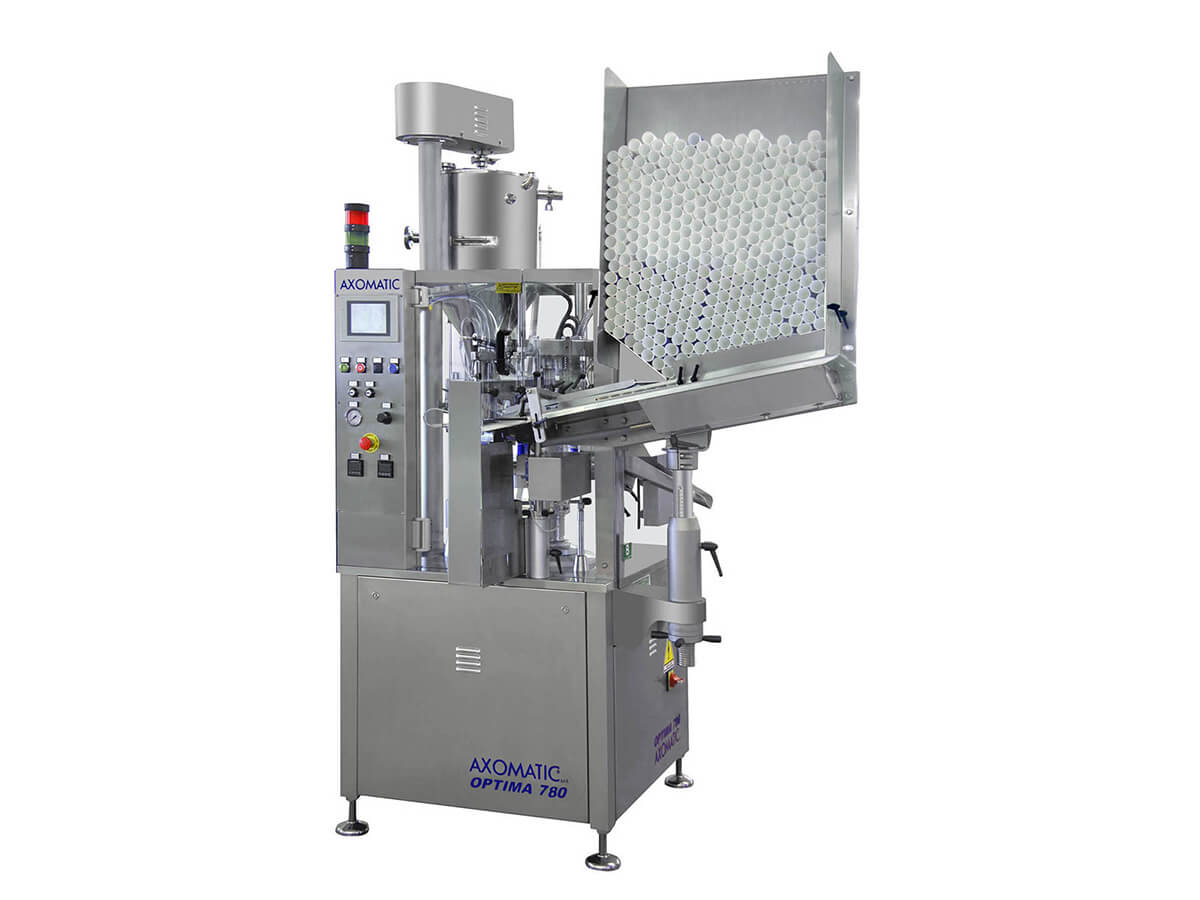

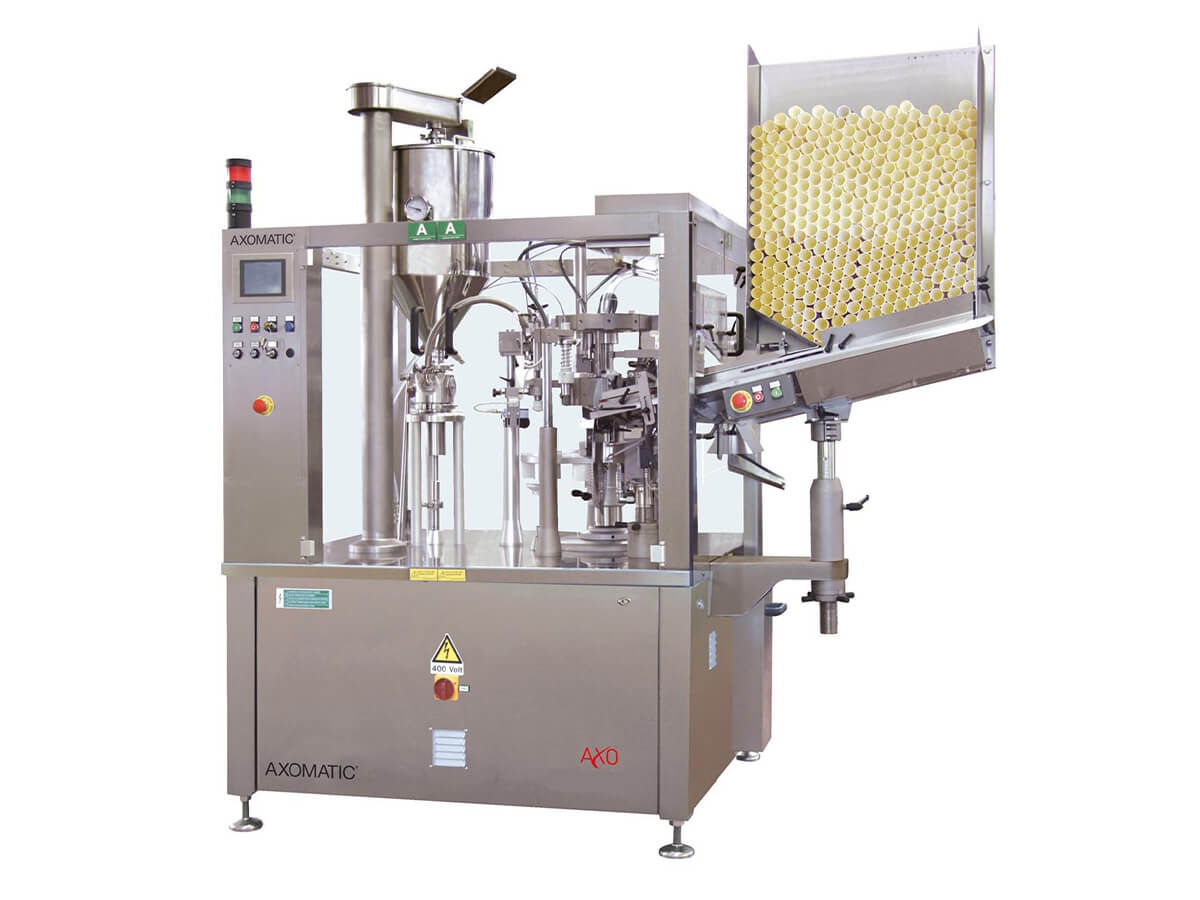

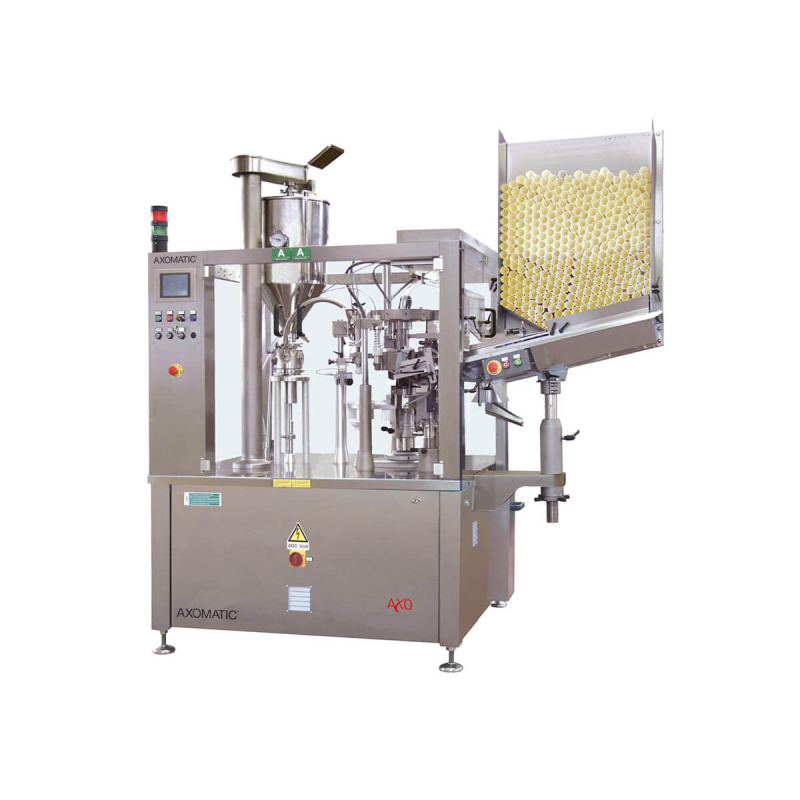

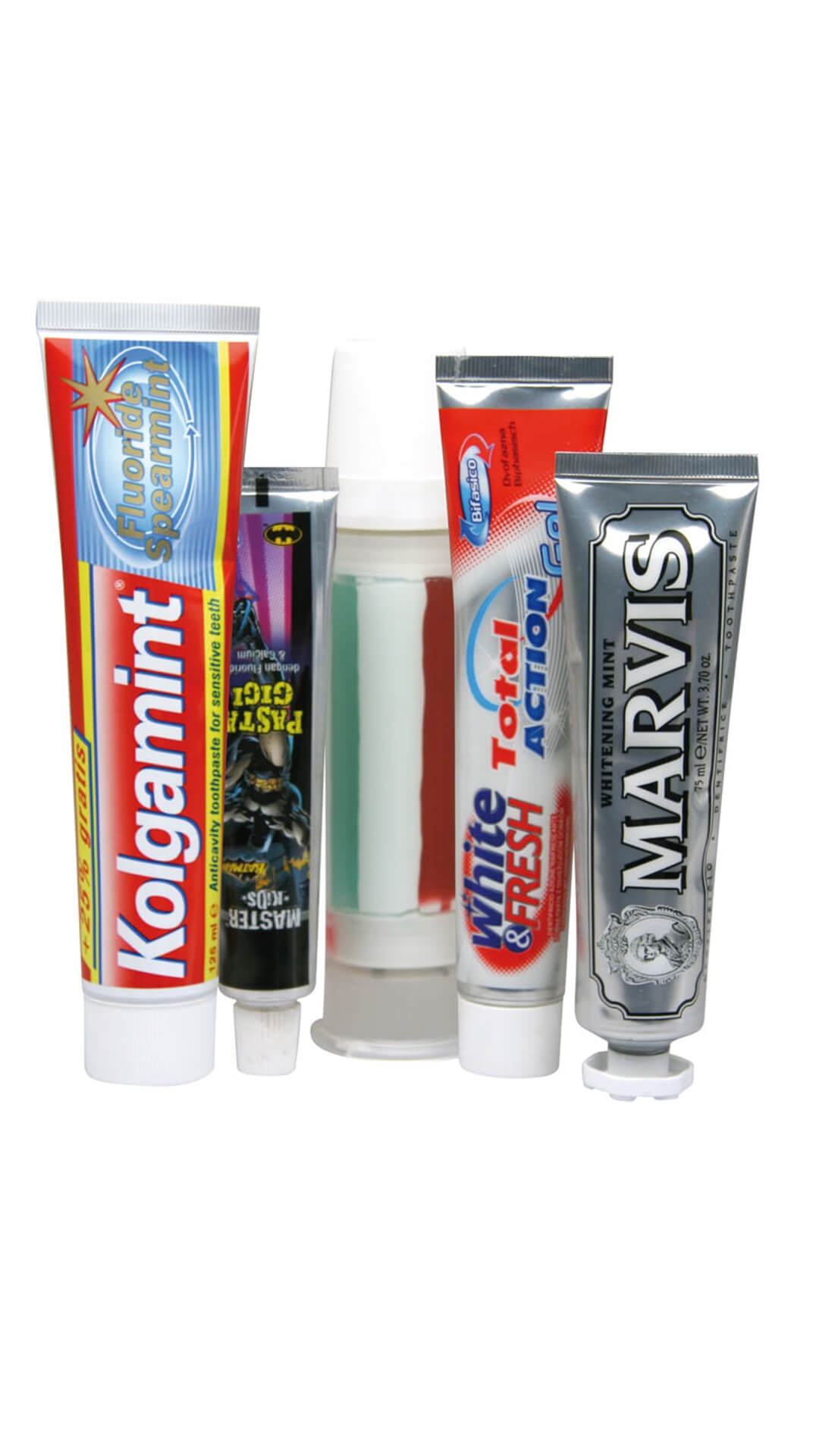

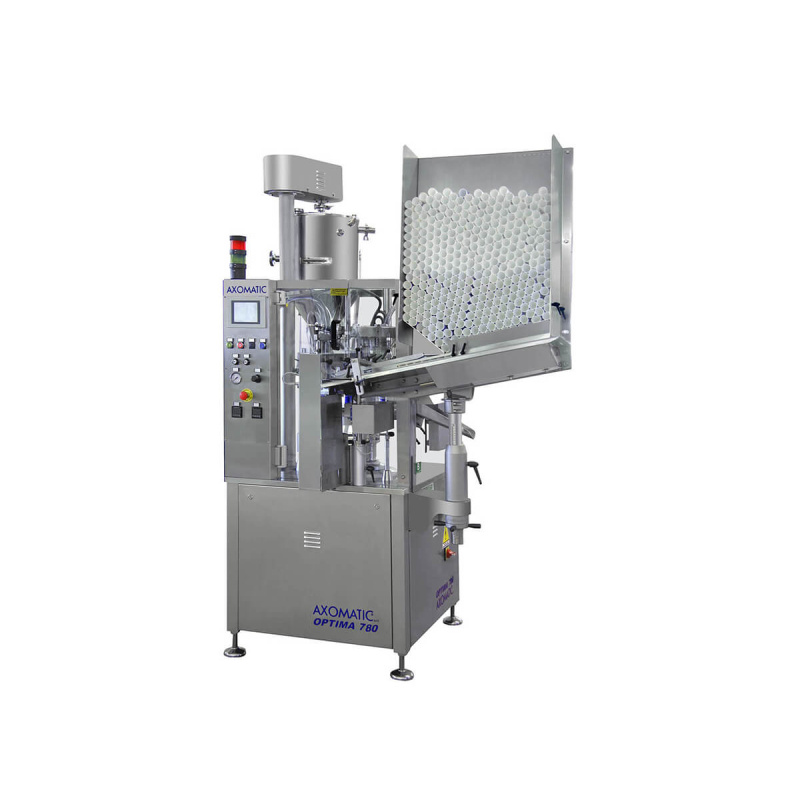

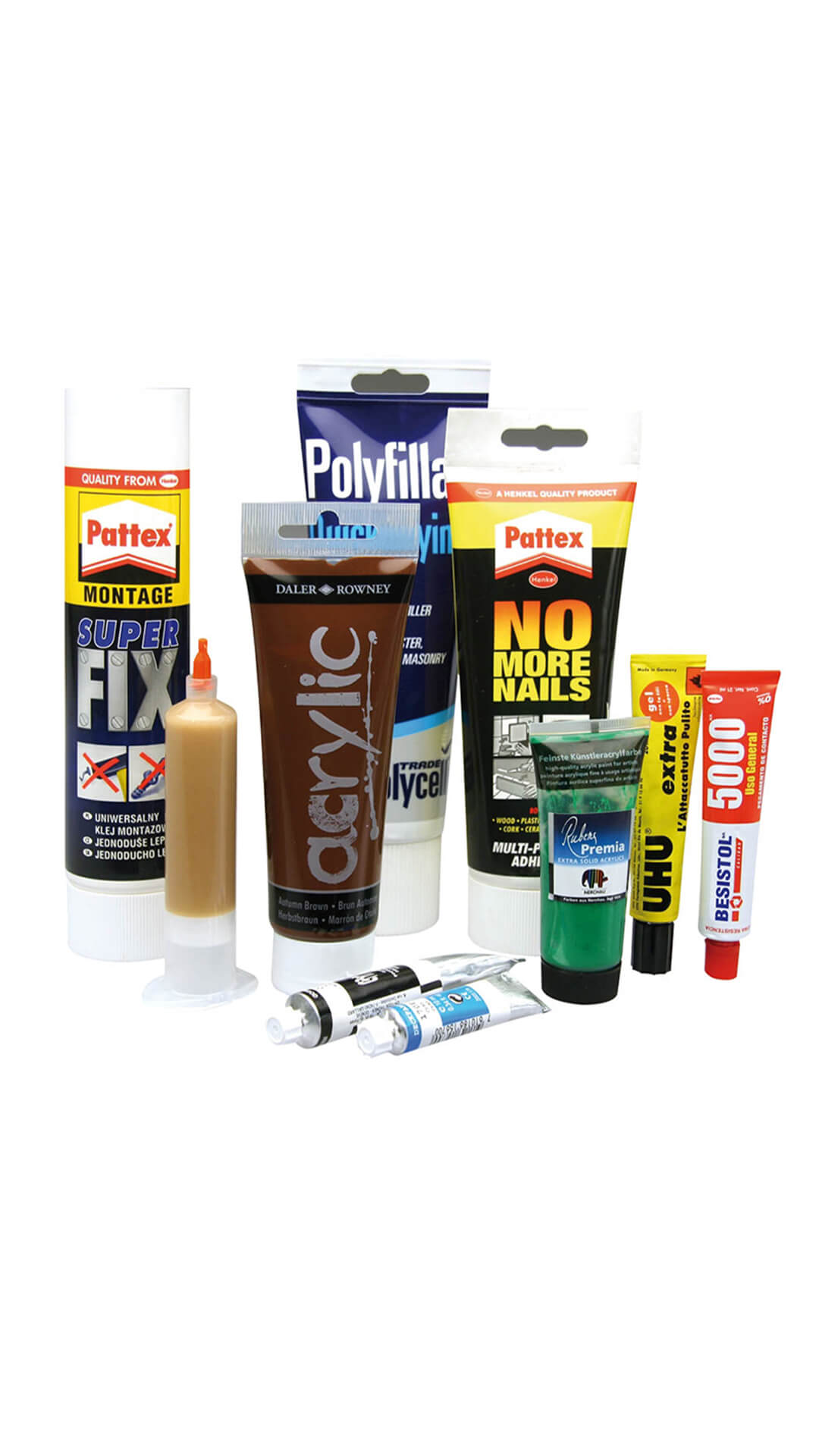

Fully-automatic tube filling and closing machine designed for filling and closing aluminium, polyethylene, or metal tubes.
- Maximum output: 12,000 pieces/hour
- Touchscreen control panel with all main functions

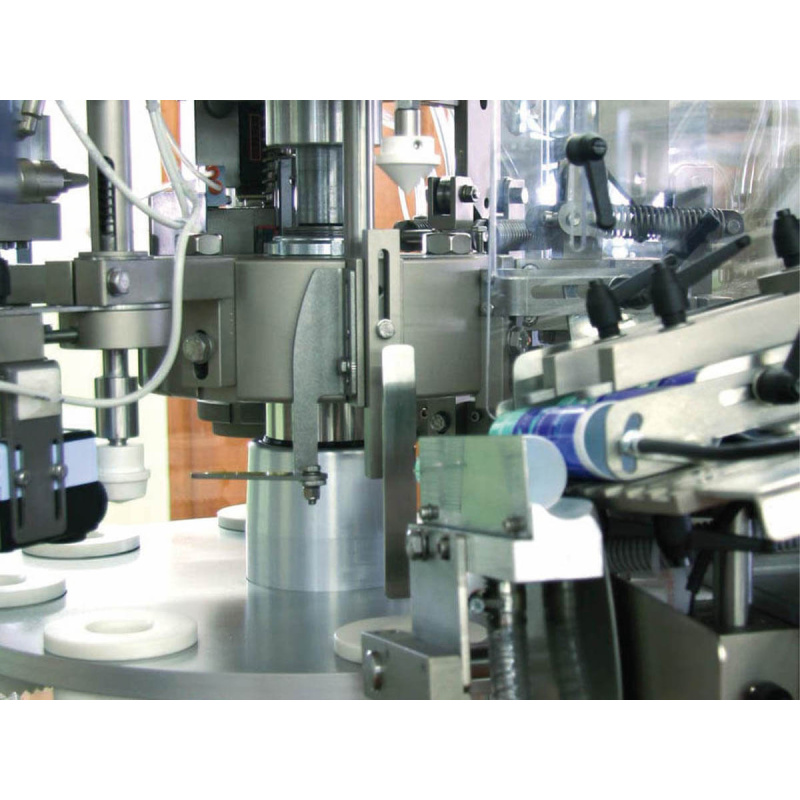

- Automatic tube loading from the tube magazine
- Automatic tube orientation
- Automatic filling using a mechanical dosing system with a dosage range between 3 and 250 ml

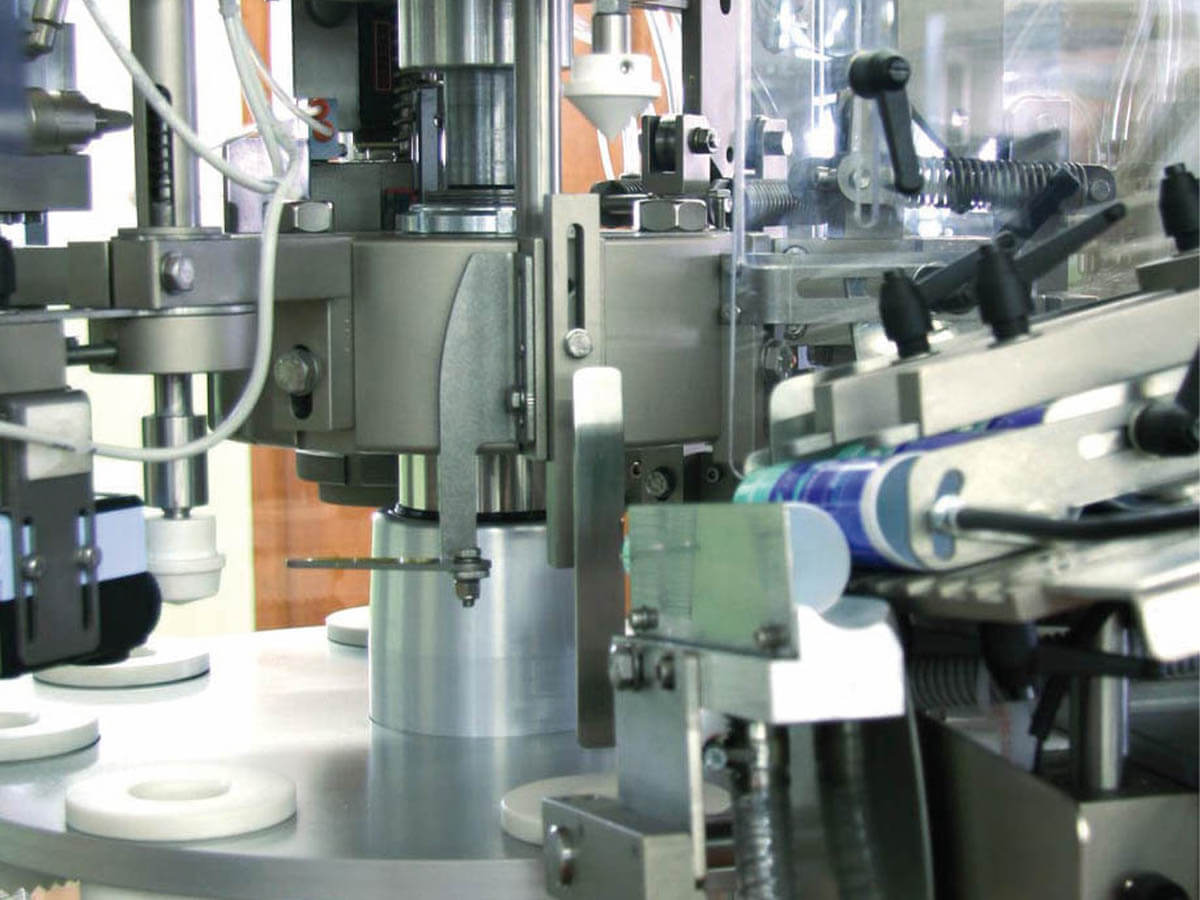

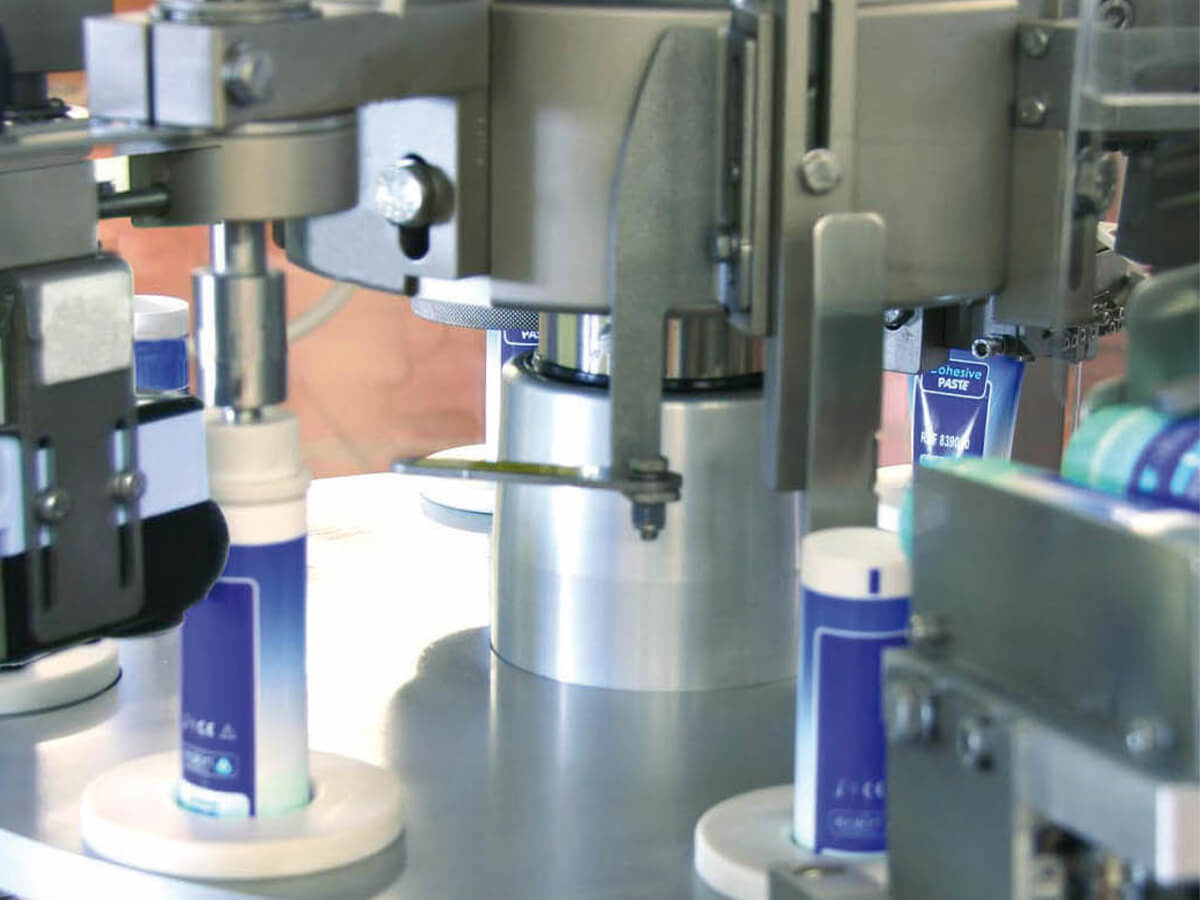

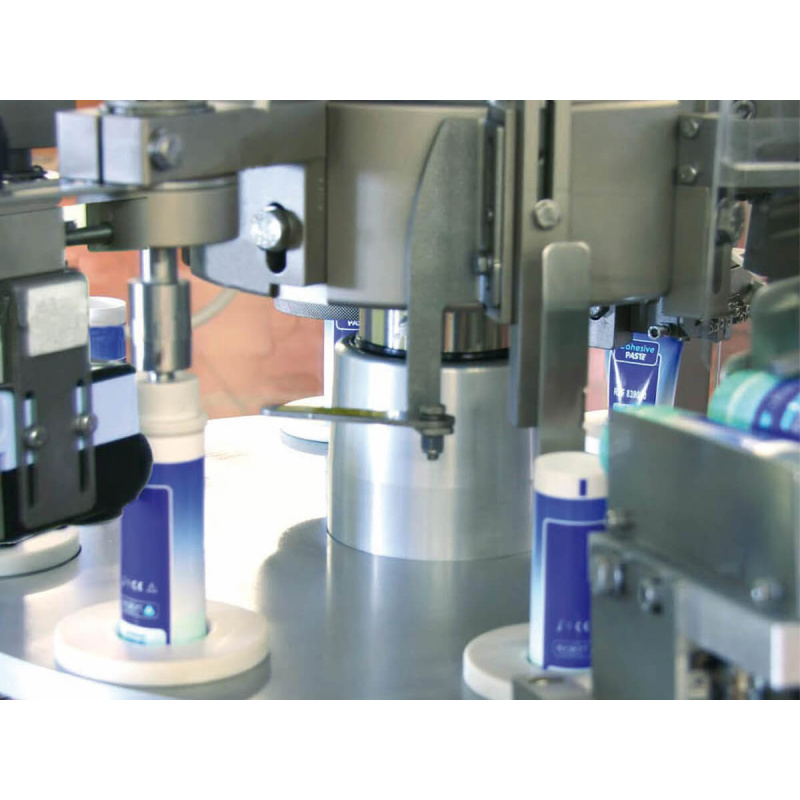

- Diving nozzle for precise dosage at the tube bottom, adjustable stroke of 130 mm
- Mechanical jaw closing system for aluminium tubes, offering simple, double, or saddle fold options
- Hot jaws for polyethylene, laminated, and polyfoil tubes
- Hot air sealing system for polyethylene, laminated, and polyfoil tubes
- Ultrasonic sealing system for polyethylene tubes
- Ability to create custom sealing systems based on customer drawings, such as round edge, curved seal, wave seal, etc.
- Axomatic machine capable of handling up to 60 mm plastic tubes
Additional Features:
- Speed: 200 pieces per minute
- Dosing range: between 3 and 250 ml (up to 500 ml optional)
- Tube diameters: 10-50 mm (up to 60 mm optional)
- Tube heights: 60-280 mm
- Stations: 24
